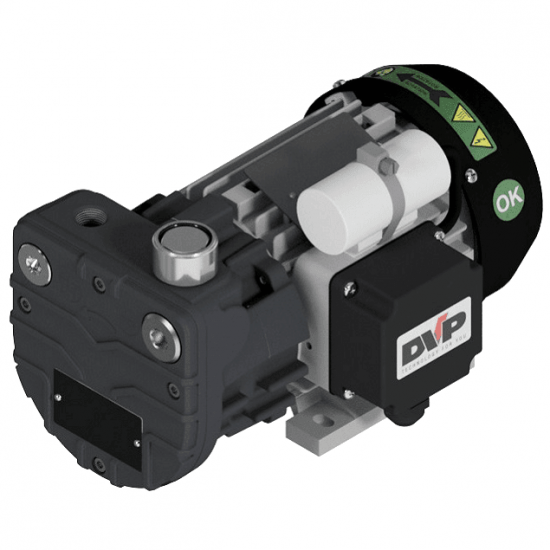

SC8 Oil-Free Rotary Vane Vacuum Pump | Vacuum Pump for CNC

SC8 Oil-Free Rotary Vane Vacuum Pump | Vacuum Pump for CNC
SC8 Oil-Free Rotary Vane Vacuum Pump | Vacuum Pump for CNC
  • Model: VPSC8
  • Weight: 8.50kg
  • Dimensions: 254.00mm x 140.00mm x 146.00mm
US$ 795.00

Available Options

Add to Cart
Buy Now Ask a question
Compare

The SC.8 is a compact, oil-free dry running rotary vane vacuum pump designed for industrial applications where clean operation and reliable performance are required. Its compact footprint makes it well suited to installations where space is limited, provided the area is sufficiently ventilated.

The pump is also suitable for use as a vacuum pump or as a compressor, with both vacuum and pressure values shown for the model in the manufacturer’s technical data. The SC.8 is supplied with an outlet silencer and features DVP’s NPO anti-oxidation treatment on the rotor, pump body and cover for improved hardness and oxidation resistance.

Key Features

  • Oil-free dry running operation
  • Compact design for restricted installation spaces
  • Can be used as both a vacuum pump and compressor
  • Outlet silencer fitted as standard
  • NPO treated rotor, pump body and cover
  • Designed for continuous industrial duty in ventilated environments
  • Available in 1 phase and 3 phase versions
  • Voltage option: 230 / 400 V

Main Applications

  • Food and beverage
  • Packaging
  • Construction industry
  • Plastic, rubber and resin processing
  • Analytical equipment
  • Printing and paper industry
  • Silk-screen printing
  • Wood presses
  • Suction lifting equipment
  • Pollutant sampling and analysis

Technical Specifications

Specification50Hz60Hz
Catalogue code9801032
Nominal capacity8.0 m³/h9.0 m³/h
Total final pressure (Abs)150 mbar
Maximum overpressure0.8 bar
Motor power (1~/3~)0.25 / 0.25 kW0.30 / 0.30 kW
Nominal speed2800 rpm3300 rpm
Noise level @ pump59 dB(A)61 dB(A)
Noise level @ compressor60 dB(A)62 dB(A)
Weight (1~/3~)8.5 kg
Pump intake / outlet3/8” G / 1/2” G
Operating temperature @ 20°C70 to 75°C80 to 85°C
Required ambient temperature0 to 40°C
Storage / transport temperature-20 to 50°C
Max humidity / altitude80% / 1000 m

Model Options

The SC.8 is available in both 1 phase and 3 phase motor versions. For your product page this can be presented as:

  • SC.8 1 Phase
  • SC.8 3 Phase
  • Voltage: 230 / 400 V

Main Accessories

  • Spare parts kit – K9801032
  • Shock mounts – 4 x 1503005
  • Inlet hose fitting – 2103007 (Ø12)
  • Inlet filter – 9001004/0
  • Non-return valve – 9007004
  • Vacuum regulating valve – 9004012
  • Vacuum gauge – 9009009
  • Pressure relief valve – 9012026

Installation Note

The SC.8 is intended for operation in sufficiently ventilated spaces. For environmental conditions outside the manufacturer’s stated limits, consultation is recommended before installation.

Looking for a Refurbished Vacuum Pump?

In addition to new units, we can often supply refurbished SC16, SC25 and SC40 vacuum pumps. These can be an excellent option for customers looking for a more economical solution without compromising on performance.

Our refurbished stock changes regularly as pumps come in and out for service and rebuild, so availability cannot always be guaranteed. In most cases, we commonly have 16, 25 and 40 size dry running pumps available or awaiting refurbishment.

Refurbished pump pricing depends on the condition of the unit and the level of work required, so each pump is quoted on an individual basis.

Where a refurbished unit is not already completed, lead time is typically around one week. During busy periods, customer repairs may take priority, although refurbishment can be scheduled against a confirmed order.

Please complete the enquiry form below if you would like to check current stock, pricing or lead time for a refurbished unit.

Vacuum Pump Servicing & Professional Refurbishment

If your vacuum pump is losing performance, running noisily or simply due for maintenance, we offer a complete servicing and refurbishment solution designed to restore your pump to reliable working condition.

Our experienced technicians regularly service and refurbish vacuum pumps used on CNC vacuum tables, industrial machinery and vacuum handling systems. We work with many major brands including Becker, Busch and other rotary vane pumps.

During refurbishment, pumps are carefully inspected and worn components such as vanes, filters, seals, bearings and internal parts are replaced where required. The pump is then cleaned, rebuilt and tested to ensure it performs reliably — often returning the unit to near new operating condition.

Refurbishing a pump can be a very cost-effective alternative to buying a new unit, while significantly extending the life of your existing equipment.

Once we receive your pump or details of the unit, we will assess its condition and provide a clear quotation together with an estimated turnaround time before any work begins.

If you would like a quotation for servicing or refurbishing your vacuum pump, please complete the enquiry form below and our team will be happy to assist.
