Liquid ring pump 25 ST

Liquid ring pump 25 ST
Liquid ring pump 25 ST
Liquid ring pump 25 ST
Liquid ring pump 25 ST
New Model
Liquid ring pump 25 ST
Liquid ring pump 25 ST
Liquid ring pump 25 ST
Liquid ring pump 25 ST
Liquid ring pump 25 ST
  • Model: LSVU25-ST
  • Weight: 50.00kg
US$ 3,200.00
Add to Cart
Buy Now Ask a question
Compare

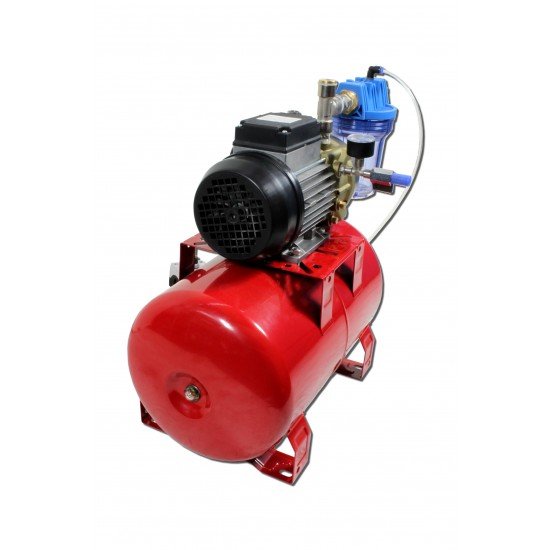

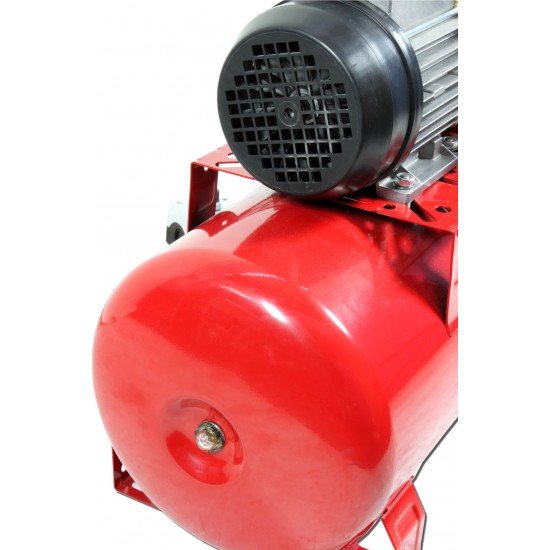

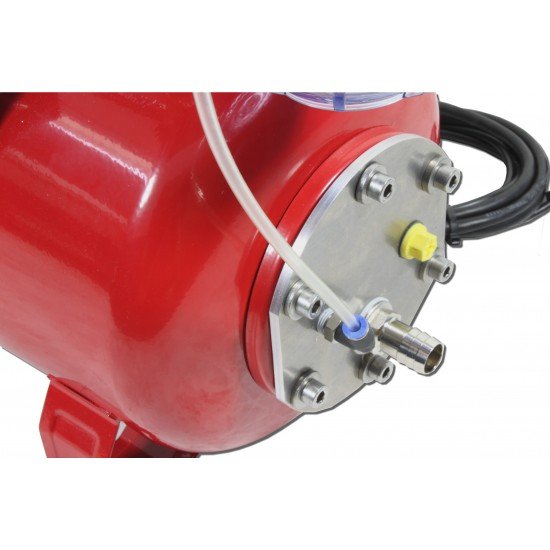

The liquid ring pump 25 ST provides a liquid volume output of 250 litres per hour.

Ideal for vacuum clamping setups where coolant is being used, recirculation of the liquid ensures constant cooling with separation of surplus swarf automatically.

Compression is achieved by feeding the liquid (usually water) into the pump and by centrifugal acceleration it forms a moving ring against its inside casing. This ring creates seals in the spaces between its vanes which form compression chambers.

Available in 240 V and 400 V.

Specifications
Achievable vacuum90%
Liquid volume output250 Litres / hour
Power supply800 W
Nominal displacement / Air volume flow24 m3/h
Power supply0.75 Kw 3~ 400 V 50 Hz
Engine speed2800 rpm
Weight21 Kg

Vacuum Pump Servicing & Professional Refurbishment

If your vacuum pump is losing performance, running noisily or simply due for maintenance, we offer a complete servicing and refurbishment solution designed to restore your pump to reliable working condition.

Our experienced technicians regularly service and refurbish vacuum pumps used on CNC vacuum tables, industrial machinery and vacuum handling systems. We work with many major brands including Becker, Busch and other rotary vane pumps.

During refurbishment, pumps are carefully inspected and worn components such as vanes, filters, seals, bearings and internal parts are replaced where required. The pump is then cleaned, rebuilt and tested to ensure it performs reliably — often returning the unit to near new operating condition.

Refurbishing a pump can be a very cost-effective alternative to buying a new unit, while significantly extending the life of your existing equipment.

Once we receive your pump or details of the unit, we will assess its condition and provide a clear quotation together with an estimated turnaround time before any work begins.

If you would like a quotation for servicing or refurbishing your vacuum pump, please complete the enquiry form below and our team will be happy to assist.
