Dry running vane vacuum pump DST 8

Dry running vane vacuum pump DST 8
Dry running vane vacuum pump DST 8
Popular
Dry running vane vacuum pump DST 8
Dry running vane vacuum pump DST 8
Dry running vane vacuum pump DST 8
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: VPDST8
  • Weight: 12.00kg
US$ 850.00

The DST 8 is a dry running vane pump without the need for lubrication or maintenance to use.

Its oil free operation works on the vane type principal and uses self lubricating carbon vanes.

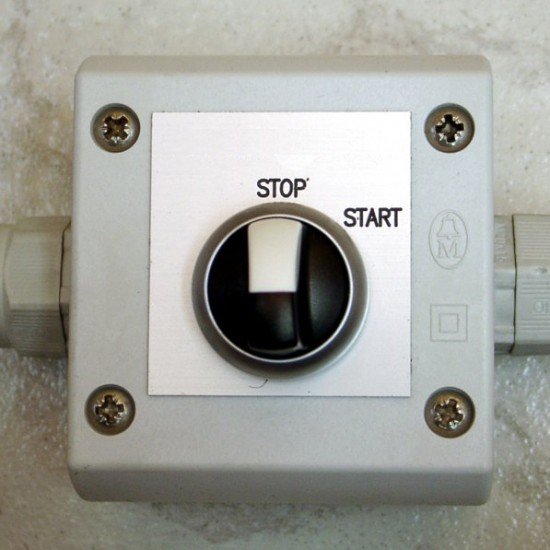

Supplied with a 4 meter cable and on / off switch, for easy control, the DST 8 can be positioned away from your working area.

Our DST 8 is a maintenance free, reliable and environmentally safe choice of pump and ideal for use with our vacuum tables.

Specifications
SpecValue
Voltage240
Nominal displacement / Volume flow 50Hz8 m3/h
Ultimate Pressure hPa120 mbar
Nominal motor rating 50Hz0.25 kW
Nominal motor speed 50Hz2,800 (min)
Noise level 50Hz60 dB(A)
Weight8.5 Kg
