Pro vacuum clamping Kit 6040
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: PROKIT6040
  • Weight: 8.00kg
  • Dimensions: 616.00mm x 416.00mm x 20.00mm
US$ 980.00
US$ 1,235.00

The Professional 6040 kit is ideal for engravers and metal workers. An all-in-one solution with everything you need to start vacuum clamping.

Simply connect your RAL Series table to your manifold and Venturi using the hose and then to your compressor.

A PVC adapter mat is also included if you want to mill all the way through.

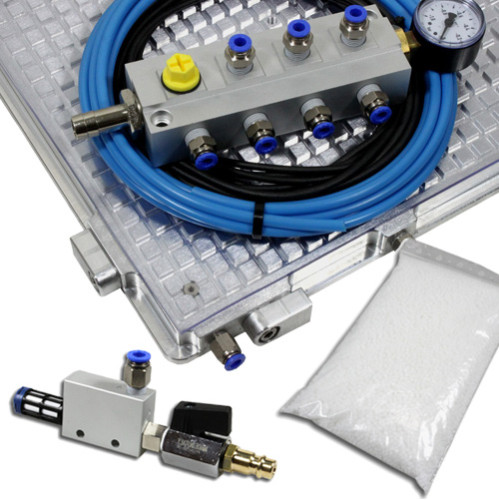

Includes
ItemQuantity
Vacuum table 6040 RAL Series1
Venturi 1.51
Manifold1
Clamping booster0.5 kg
PVC adapter mat1
Rubber sealing cord1 metre
Set connecting hose1
Vacuum table specifications
MaterialCast Aluminium
Clamping area (mm)600 x 400
External dimensions (mm)616 x 416 x 20
Vacuum points6
Grid spacing12.5 mm
Additional8 mm surrounding clamping base
Mats supplied in a variety of types and sizes suitable for use with our hol..
Neoprene rubber sealing cord, 4 mm in diameter,  suitable for our grid..
Vacuum manifold in various designs and sizes for easy mounting on the frame..
Clamping booster increases the clamping force of our vacuum tables and can ..
Various sizes of connecting hose suitable for our vacuum tables and vacuum ..
